    Sinotruk Howo Gear Box Transmission HW19710T Clutch Control Components (Pull-type) (AC22100000501)

    Ask Lasest Price
    Brand Name : SINOTRUK
    Model Number : HW19710
    Price : Negotiable
    Delivery Time : Within 20-30 days after the receipt of the deposit
    Payment Terms : T/T
    Supply Ability : 100 units per week
    Certification : ISO|CCC
    • Product Details
    • Company Profile

    Sinotruk Howo Gear Box Transmission HW19710T Clutch Control Components (Pull-type) (AC22100000501)


    Sinotruk Howo Gear Box Transmission HW19710T Clutch Control Components (Pull-Type) (AC22100000501)


    Specification:

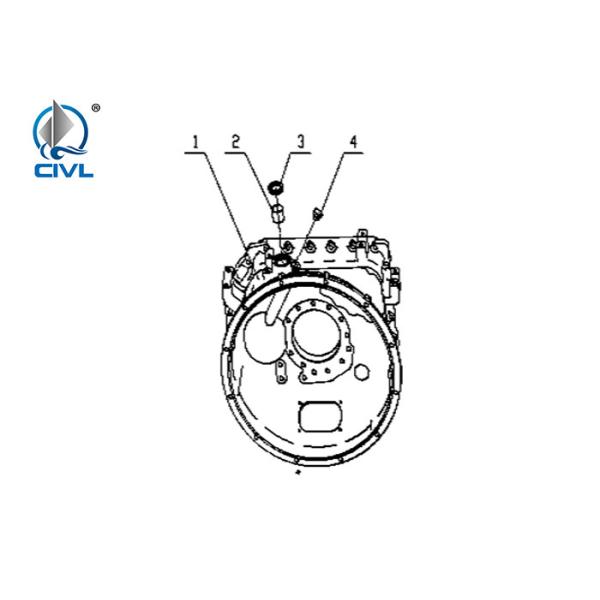

    1. Clutch Control Components (Pull-type) (AC22100000501)

    Sinotruk Howo Gear Box Transmission HW19710T Clutch Control Components (Pull-type) (AC22100000501)


    POSNumber of partQuantityDescription
    1WG22200005011Clutch Housing
    2WG22290030301Composite Bush(DX)30×34×30
    3WG90030730011Framework Oilseal PS 30 45 8
    4WG22290000111Plug

    2. Main Housing Components (AC22100100501)


    POSNumber of partQuantityDescription
    1WG22290100131Shift Rocker Arm Shaft Cover Plate
    2Q14208162Hexagon Bolt and Spring Washer Components
    3WG22200105011Main Housing
    4WG22290100091Plate
    5Q14208163Hexagon Bolt and Spring Washer Components
    6WG22290100022Plug
    7WG22120100011Interlock Shaft—Main Housing
    and Range
    8WG22290100122Lock Spring
    9WG22290100081Interlock Spring Seat
    10WG22220100021Oil Cooler Cover
    11Q14610354Bolt Components
    12WG22290100014Locating Pin
    13WG22290100101lock screw
    14WG22220100011Idle Gear Cover
    15Q14210258Hexagon Bolt and Spring Washer Components
    16WG22030100021Drain Plug Assembly
    17WG22290100051Damping Spring Seat
    18WG22290100111Lock Pin
    19Q142104023Hexagon Bolt and Spring Washer Components

    3. Input Shaft and Cover Assy.(Pull Type) (AC22100200501)

    Sinotruk Howo Gear Box Transmission HW19710T Clutch Control Components (Pull-type) (AC22100000501)

    POSNumber of partQuantityDescription
    1WG900380103210Hexagon Bolt and Spring Washer
    ComponentsQ1421032
    2WG22220200201Bearing Cover
    3WG90030705011Oil Seal
    4Q431751Circlip for Shaft
    5WG90033231311Taper Baring 31315X3
    6AZ22100205011Input Shaft
    7WG22290200201Lock Ring
    8AZ221002050213rd/4th Cone Ring

    International Market:

    Ethiopia/Sudan/Algeria/Djibouti/Kenya/Tanzania/Uganda/Rwanda/Seychelles
    /Mauritania/Senegal/Mali/Gambia/Sierra Leone/Liberia/Ivory Coast/Ghana/Benin/Ghana/Niger
    /Nigeria/Chad/Cameroon/Guinea/Gabon/Congo/Zambia/Zimbabwe/Malawi/Angola/Mozambigue
    /Botswana/Namibia/Swaziland/Lesotho/Africa
