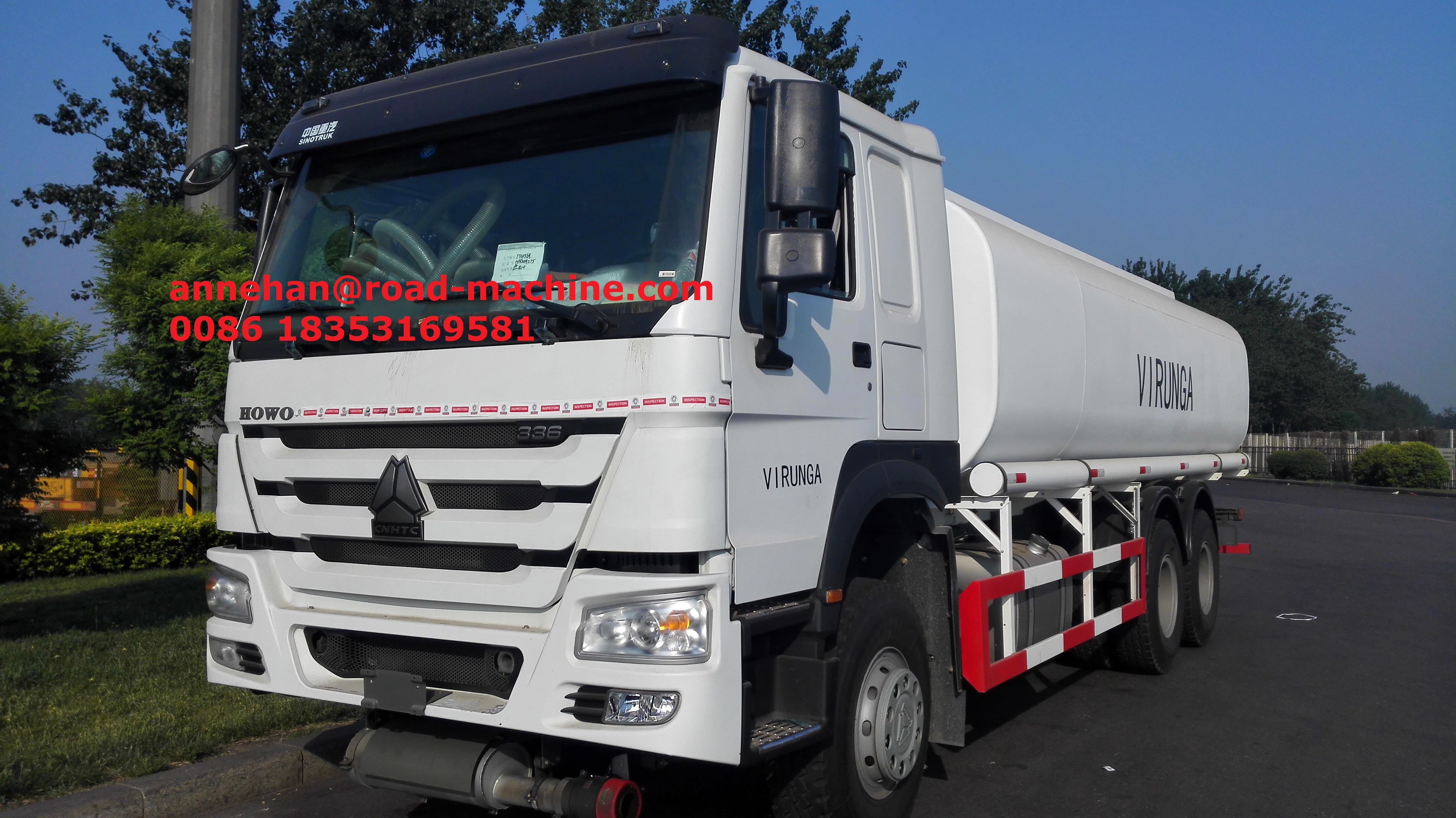

SINOTRUK HOWO Oil Tank Truck 25-30CBM for Oil Transportation 8X4
LHD Euro2 336HP
Description:
SINOTRUK HOWO Oil Tank Truck 25-30CBM for Oil Transportation 8X4
LHD Euro2 336HP
The tanker is also called mobile fuel trucks, computer refueling
vehicle, oil tanker, tanker loading oil, pulling oil, oil truck,
edible oil transport vehicle, mainly for oil derivatives (gasoline,
diesel oil, lubricating oil and coal tar oil) transportation and
storage. According to a variety of gas or oil, and the use of
different environment with the oil, pump oil, a variety of oil
equipment, put the function. Tanker special part is composed of a
tank, PTO, drive shaft, gear pump, pipeline system components.
Pipes system is composed of an oil pump, three through four ball
valve, two-way valve. Filter pipe.
Specification:
| SINOTRUK HOWO Oil Tank Truck 25-30CBM for Oil Transportation 8X4
LHD Euro2 336HP |
| Chassis Model | ZZ1317N4667W |
| Drive Type | 8×4 |
| Engine | WD615.69, 336HP |
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and two
new-style seat) |
| Transmission | HW15710(10 forwards & 2 reverses) |
| Front Axle | HF9(1X9 Tons) |
| Driving Axle | HC16(1X16 Tons) |
| Clutch | hydraulically operating with air assistance |
| Rim/ Tire | 11.00R20, Radial tyre |
| Wheel base | 1800+4600+1350(mm) |
| Capacity of tank body | 25-30CBM |
| Thickness of tank body | 5mm,With 6cabin |
| Basic setup | Gear oil pump, flow meter, flash hider, fire extinguisher |
| Overall dimension | 11894×2500×3550mm |
| The curb weight | 12300(Kg) |
| Gross weight | 31000 kg |
| Max. speed | 95km/h |
| Color | White, red, green, golden and so on. |
Applications:
The Oil tank truck is mainly used for oil derivatives (gasoline,
diesel oil, lubricating oil and coal tar oil)
transportation and storage.
Competitive Advantage:
1) Our company produces the Oil tank truck with advanced butt
welding technology, after the forming of the tank high pressure gas
leak detection, the tank has a high intensity, stable center of
gravity, safe and stable vehicle characteristics;
2) Shot blasting pre treatment process after welding tank, rust,
paint adopts the advanced baking technology, durable and beautiful
appearance. Independent sub positions,
3) Divided into different oil products, chemicals, food, as liquid
food truck, chemical liquid truck,
insulation liquid vehicles, dangerous goods transport vehicles, the
asphalt transportation vehicle
4) External sandblasting processing of tank, internal
anti-corrosion treatment, Outside surface adopts advanced
polyurethane paint, beautiful appearance
5) Front and back high spray is optional, water jet diffusion
function, 360 degrees of rotation,
150 degree tilt up and down. Options small flow pump, spraying reel
to wake insecticidal garden trees
flowers and plants
6) with all kinds of truck model, which can fulfill your
requirement
7) the key parts adopt the world's top technology products
8) based on strong technical support and top level technology make
the trucks with high quality and
more reliable
9) competitive price, cost-effective
10) quick and efficient spare parts supply bring you more
convenient
11) fast delivery time, we can arrange production according to your
needs exactly and quickly
12) professional import and export dealing procedure, make customs
clearance more high efficiency
