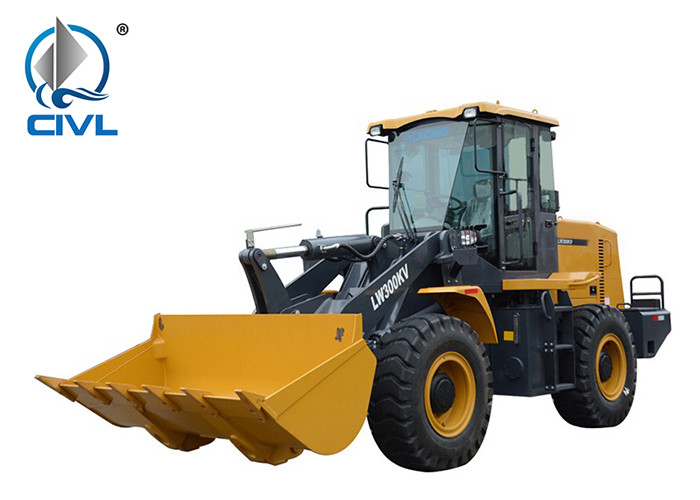

    Compact Wheel Loader LW300KN 3 Ton Wheel Loader Front End Loader

    Ask Lasest Price
    Brand Name : CIVL
    Model Number : CIVL
    Price : Negotiable
    Delivery Time : Within 35 days
    Payment Terms : LC/TT etc
    Supply Ability : 100 units per week
    Certification : ISO,CCC
    • Product Details
    • Company Profile

    Compact Wheel Loader LW300KN 3 Ton Wheel Loader Front End Loader

    LW300KN 3 Ton Wheel Loader Front End Loader for sale


    Description and advantages:


    Main parameters

    Rated load : 3 tons

    Bucket capacity :1.5-2.5 m3

    Dumping height: 2770~3260mm

    Operating weight: 10900KG


    Main configuration

    * engine WP6G125E201(92kw)

    * Dry drive axle Optional parts: A/C/ 1.8m3 Blade bucket/ 2.1m3 Lignt material Blade bucket/ 2.5m3 Lignt material Blade bucket / 1.8m3 Reinforced bucket.


    LW300KN is a classic high-end loader from XCMG, which is famous for its superior performance and adaptability.

    With the features of maturity and reliability of the old model, LW300KN is improved all round, and leads in the same kind of product.

    The machine features high efficiency, strong power, long service life and comfortability, and is applicable to various conditions.

    Great strength Tilt cylinder bore of 160mm, enlarge the boom cylinder bore from 110mm to 125mm, and increase the boom lifting force by 29%.


    Specification
    Description
    Unit
    Parameter value
    Rated operating load
    kg
    3000
    Bucket capacity
    1.5~2.5
    Machine weight
    kg
    10900±200
    Dump clearance at maximum lift
    mm
    2770~3260
    Reach at maximum lift
    mm
    1010~1210
    Wheel base
    mm
    2900
    Tread
    mm
    1850
    Height of hinge at maximum lift height
    mm
    3830
    Working height(fully lifted)
    mm
    4870
    Max.breakout force
    kN
    130
    Max.horse power
    kN
    95
    Hydraulic cycle time-raise
    s
    5.4
    Total hydraulic cycle time
    s
    9.3
    Min. turning radius over tyres
    mm
    5170
    Articulation angle
    °
    38±1
    Gradeability
    °
    28
    Tyre size
    17.5-25-12PR
    Overall machine dimension L×W×H
    mm
    7245×2482×3320
    Model
    WP6G125E201
    Emission standards
    Emission 2
    Rated Power/Speed
    kW/rpm
    92/2000
    Fuel Tank
    L
    170
    Hydraulic Tank
    L
    175
    Travel Speed
    Ⅰ-gear(F/R)
    12/16 km/h
    Ⅱ-gear(F/R)
    38/-km/h

    Compact Wheel Loader LW300KN 3 Ton Wheel Loader Front End LoaderCompact Wheel Loader LW300KN 3 Ton Wheel Loader Front End LoaderCompact Wheel Loader LW300KN 3 Ton Wheel Loader Front End Loader
