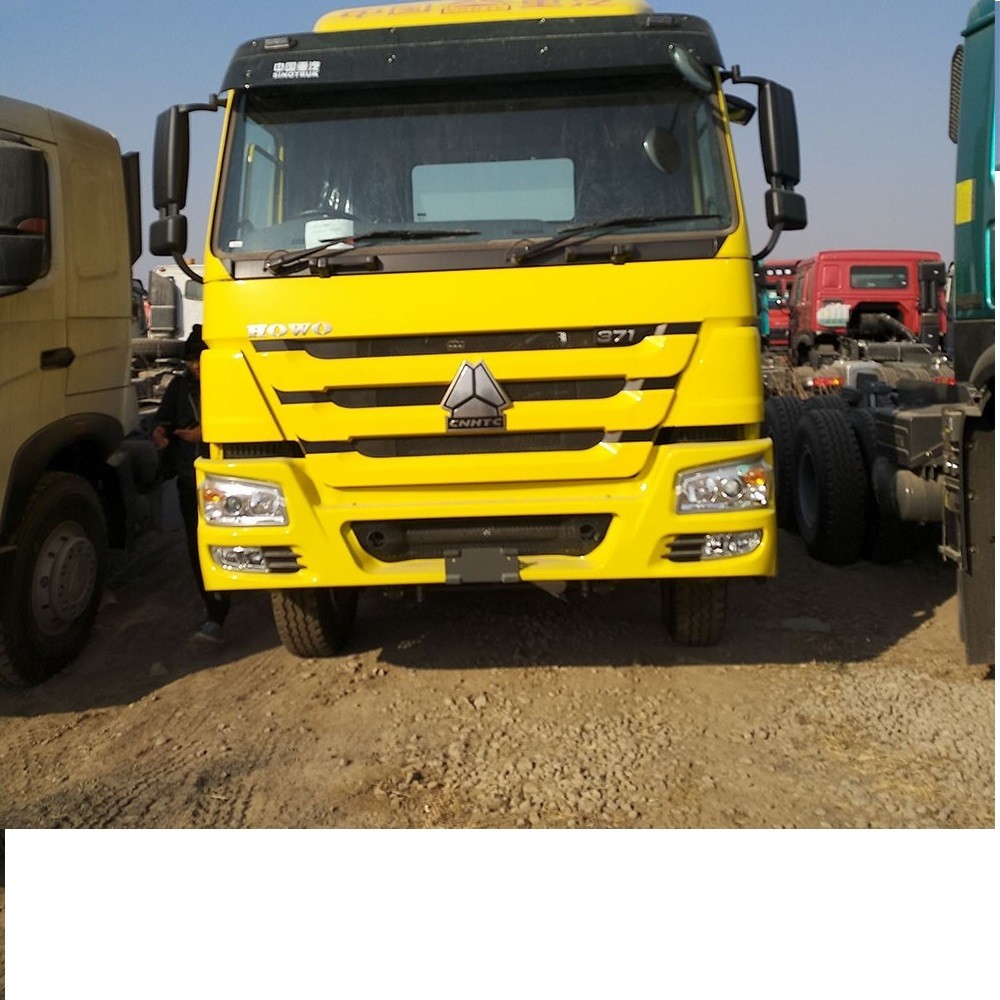

Details photo:
Features:
Driving type: LHD(RHD is optioned)
Cabin:
North Benz long cabin, one sleeper, A/C
Radio player(with USB), Safety belt, Adjustable air type, high back
and shock absorption
Driver seat with handle and seatbelts
Dash board with all necessary gauges such as (km meter, rpm, oil
pressure, temperature, air pressure,Fuel level)
Headlight, Sun protection on cabin.
Engine:
Engine brand: Weichai
Engine model: WP10.380E32 EURII EGR
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder
in-line
With water cooling, turbo-charging & inter-cooling with exhaust
valve brake.
Displacement: 11.596 liters
Max. Output: 380HP@353kW
Max torque: 1970NM@1200-1500rpm
Bore/Stroke(mm): 126/155
Clutch:
Clutch: Φ 430 Diaphragm type
Type: Single dry frictional disc, Hydraulic boosting
Gear box:
Model: Fuller 12 speeds(12JS200T), manual, 12-forward and 2 reverse
speeds
Steering: TAS85
Brake system:
Double-circulate brake system
Axles:
Front axles: 7.5 Tons
Rear axles: double Reduction driving axle, Ratio: 1:
5.921(option5.263, 6.733)
Frame: Strengthened frame 317x70x8.5+7+8mm(E380TM)
Tyre: 12.00R20
No tyre: 10+1 spare
Spring: 13/13
Fuel tank capacity (L): 400
Weight:
Kerb. Mass: 9200 kg
Towing mass: 25000kg
Dimensions:
Wheel base (mm): 3450+1450
Front overhang (mm): 1410
Rear overhang (mm): 625
Front track (mm): 1995
Rear track (mm): 1800
Max. Length(mm): 6935
Max. Width(mm): 2495
Max. Heigh(mm): 3340
Performance:
Max. Speed (km/h): 100
Approach angle: 20 degree
Departure angle: 64 degree
Max. Gradeability(%): 30
Fifth Wheel: 50#
Specifications:
| Wheel base (mm) | 3450+1450 |
| Curb weight (kg) | 8800 |
| Gross towing trailer weight (kg) | 40000 |
| Max Speed:(Km/h) | ≥90 |
| Dimension(Length*Width*Height) | 6935*2495*3340mm |
| Engine | Model | WD10.380,water-cooled,four strokes,6 cylinders straight in line,turbocharged, |
| Fuel type | Diesel |
| Emission | EUROIII |
| Displacement(L) | 9.726 |
| Fuel tanker capacity (L) | 400L |
| Clutch | Model | Φ430, Diaphragm Spring,Hydraulic boosting |
| Gearbox | Model | 12JS200TA, mechanical type,12 Forward speed gear. |
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air
brake system |
| Assistant brake | Engine exhaust brake |
| Park brake | Potential springs pressing on middle and rear wheels |
| Steering system | Model | ZF8098 |
| Suspension system | Front Suspension | Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension, |
| Rear Suspension | Non-free standing stabilization spring,stabilization suspension, |
| Frame | Fish belly shape, variable width, variable sections |
| Cross section dimension of frame(mm) | 317×70×8.5+7mm |
| Front axle (Mercedes Benz Technology) | Double-shoe pneumatic brake, non-driving steering axle
AL7/1DS-7/5.921 |
| Middle and Rear axle (Mercedes Benz Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub
redactor, double reduction driving axle Middle axle: HD7/016DGS-13/5.921
Rear axle: HL7/015DS-13/5.921
|
| Tire | 12.00R20 |
| Qty of tire | 11 |
| Electrical system | Battery | 2X12V/135Ah |
| Generator | 28V-35A |
| Starter | 5.4Kw/24V |
| Cab | Long cab with single sleeper, Full steel skeleton structure, covered with double layer steel
plate; Can be tipped forwardly;
|
Interior trimming: High back/shock absorption seat for driver. Inner A/C, Manual door
locks, manual glass lift
|
Exterior trimming: NG80B front grid plate, Metal bumper, three steps, sun visor, new
mirror system.
|
| Fifth wheel | #90 single direction (JOST) |
Service:
Pre-service:
- Inquiry and Consulting support.
- Sample testing support.
- View our factory.
- Design various solutions as buyer's requirement.
After-sale service:
- Training how to use and maintain the truck.
- Our engineers supply the support of technology.
- 12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
- Parts supply on time.
- 24 hours service and technology support.
